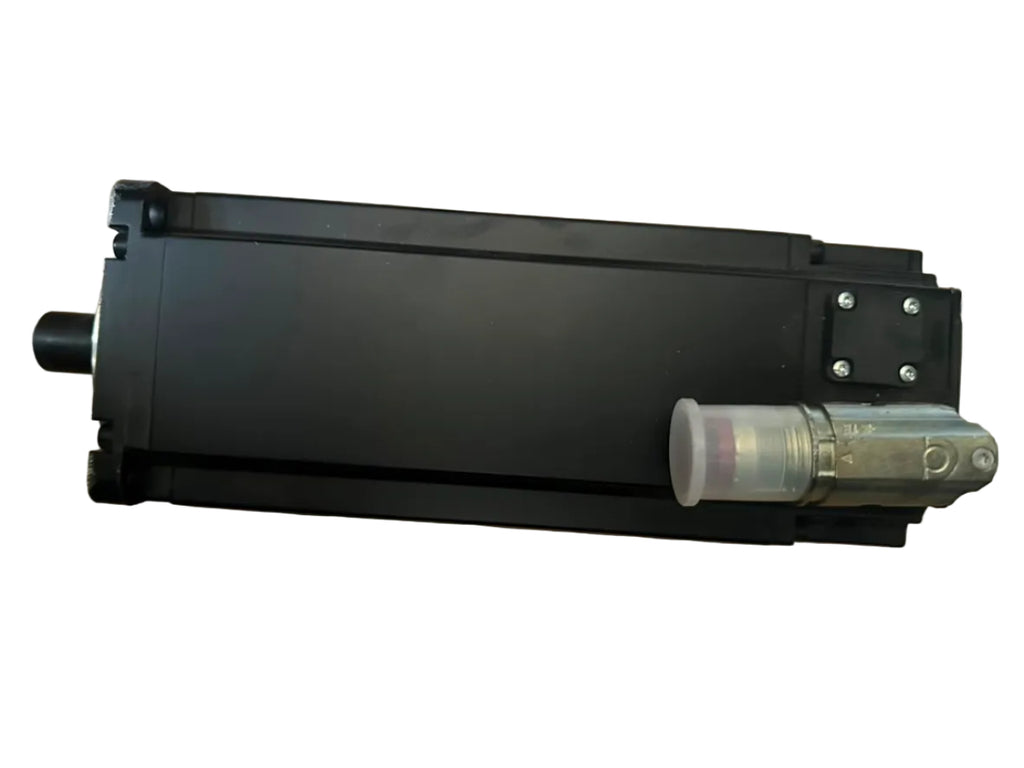

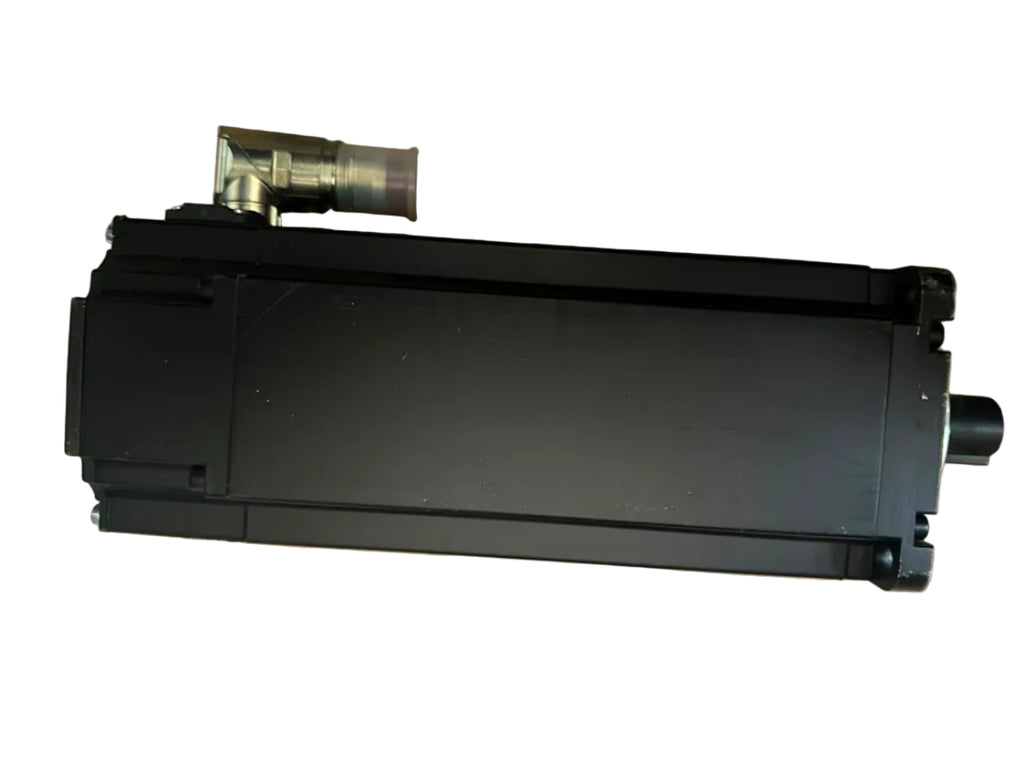

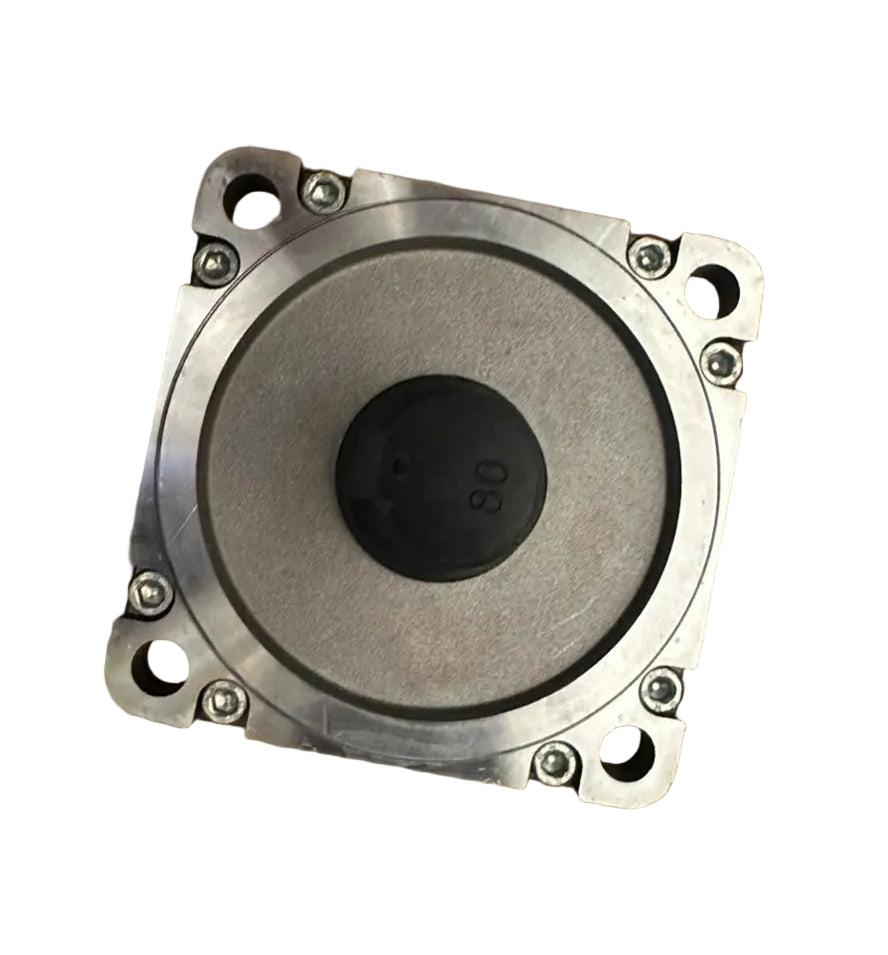

B&R 8LSA46.DB030S300-3 AC Servo Motor 400V 3000 RPM with 8 Nm Brake

Condition

New – Open Box

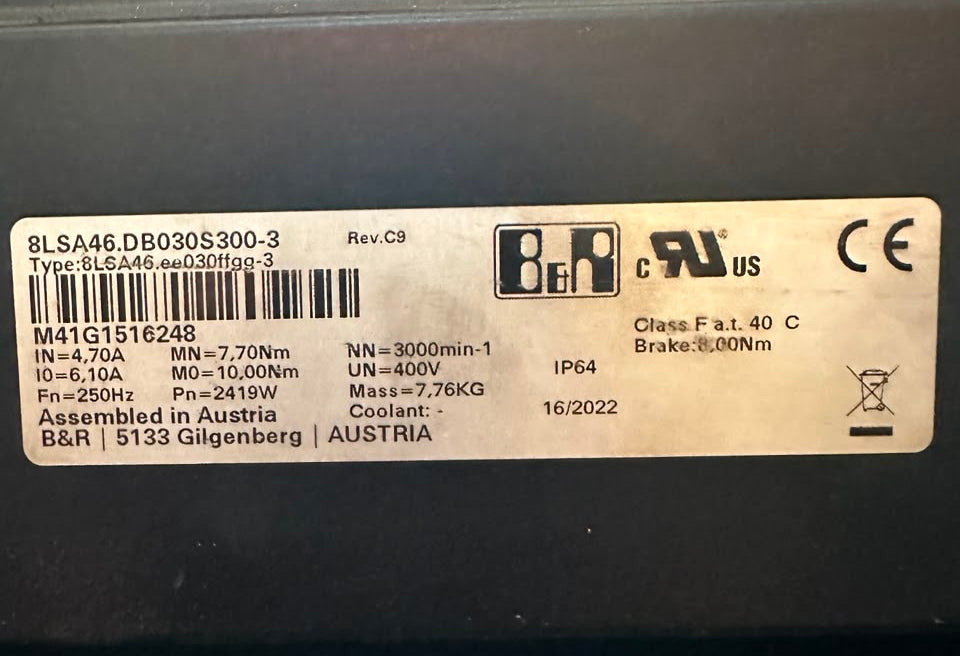

Specifications

• Brand: B&R Automation
• Model Number: 8LSA46.DB030S300-3
• Type Number: 8LSA46.ee030ffgg-3
• Series: 8LS Servo Motor
• Motor Type: AC Synchronous Servo Motor
• Rated Voltage: 400 V
• Rated Current (IN): 4.70 A
• Peak Current (I0): 6.10 A
• Rated Speed (NN): 3000 RPM
• Rated Torque (MN): 7.70 Nm
• Peak Torque (M0): 10.00 Nm
• Rated Power (Pn): 2419 W
• Rated Frequency (Fn): 250 Hz
• Brake Torque: 8.00 Nm
• Protection Rating: IP64
• Insulation Class: Class F (at 40°C)
• Revision: C9
• Manufacturing Date: Week 16 / 2022
• Country of Assembly: Austria
